| Standard | IEC 60947-7-1 |
|---|---|
|
Voltage / Impulse Voltage
|
800 V / 8 kV
|
|
Maximum Current |
24 A |
|
Pollution Degree / Voltage Category/ Material Group
|
3 / III / I
|
|
Insulating Material
|
PA 66
|
|
Inflammability Class (acc. to UL94) |
V0
|
|
Wire Range
|
0.08 ~ 2.5mm2
|
|
American Wire Gauge |
18 ~ 14 AWG
|
|
Wiring Type
|
Side-entry
|
|
Stripping Length
|
8 ~ 9 mm / 0.33 in
|
|
Length
|
42.5 mm / 1.67 in
|
|
Width
|
5 mm / 0.197 in
|
|
Height
|
30.5 mm / 1.20 in
|
|
Colour
|
Gray
|
| Standard | IEC 60947-7-1 |
|---|---|
|
Voltage / Impulse Voltage
|
800 V / 8 kV
|
|
Maximum Current |
32 A |
|
Pollution Degree / Voltage Category/ Material Group
|
3 / III / I
|
|
Insulating Material
|
PA 66
|
|
Inflammability Class (acc. to UL94) |
V0
|
|
Wire Range
|
0.08 ~ 4mm2
|
|
American Wire Gauge |
18 ~ 12 AWG
|
|
Wiring Type
|
Side-entry
|
|
Stripping Length
|
9 ~ 10 mm / 0.37 in
|
|
Length
|
42.5 mm / 1.67 in
|
|
Width
|
6 mm / 0.236 in
|
|
Height
|
32 mm / 1.28 in
|
|
Colour
|
Gray
|

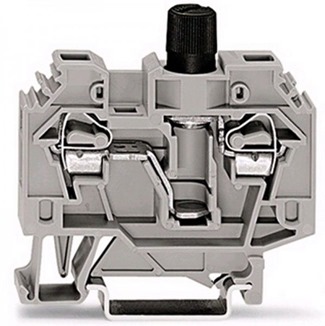

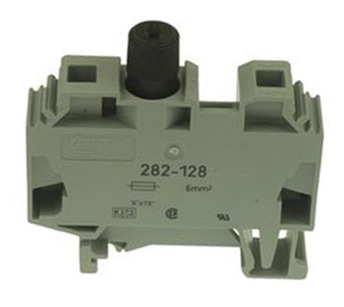

| Standard | IEC 60947-7-1 |
|---|---|
|
Voltage / Impulse Voltage
|
220 V / –
|
|
Maximum Current |
32 A |
|
Pollution Degree / Voltage Category/ Material Group
|
3 / III / I
|
|
Insulating Material
|
PA 66
|
|
Inflammability Class (acc. to UL94) |
V0
|
|
Fuse Type
|
G*5*20mm
|
|
Wire Range
|
0.2 ~ 6mm2
|
|
American Wire Gauge |
24 ~ 10 AWG
|
|
Wiring Type
|
Side-entry
|
|
Stripping Length
|
12 ~ 13 mm / 0.49 in
|
|
Length
|
62 mm / 2.44 in
|
|
Width
|
13 mm / 0.512 in
|
|
Height
|
54 mm / 2.13 in
|
|
Colour
|
Gray
|
