MECHANICAL LOCKS

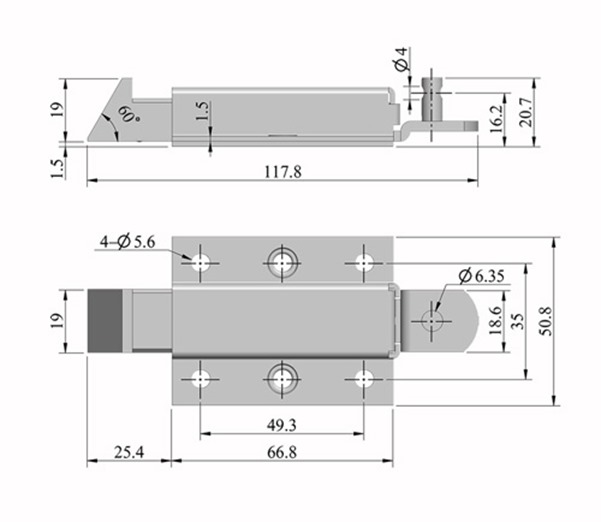

SPRING DOOR HOOK

SPECIFICATIONS:

Material: Carbon steel base , arm , zinc alloy lock tongue

Surface treatment: Blue-plated zinc base , arm , lock tongue

Structural feature: Closed by wire rope or connecting rod operation/ Open the striker; the length of the bolt can be adjusted; the direction of the bolt can be adjusted

Spring force: 15 pounds; for 5/16” lock bar

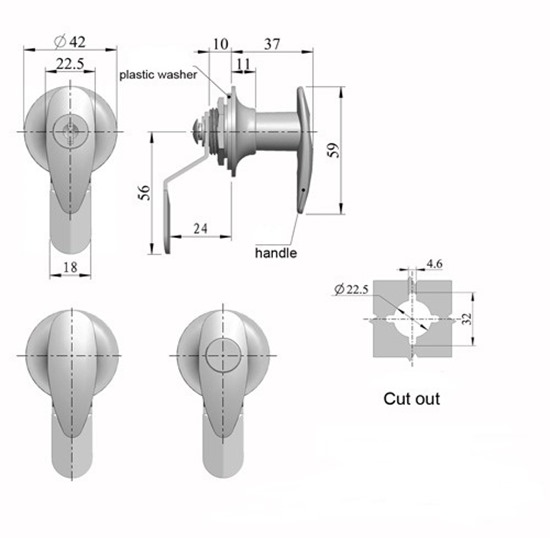

T HANDLE DOOR LOCK

SPECIFICATIONS:

Material: Zinc alloy handle, base, lock core; carbon steel bolt

Surface treatment : Chrome-plated handle, base, lock core; white zinc- plated steel bolt

Structural features: Handle is 90 degrees to achieve opening or locking;

Optional Without lock core

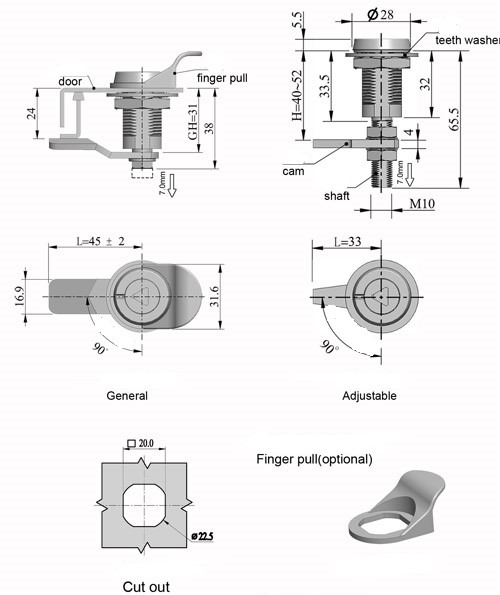

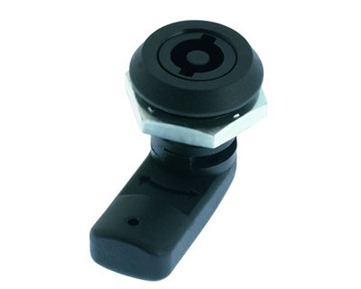

COMPRESSION CAM LOCK

SPECIFICATIONS:

Material: Zinc alloy base, lock core; carbon steel bolt

Surface treatment: Plastic-sprayed black base, lock core; galvanized steel bolt

Structure: Steel bolt 90 degree rotation to achieve open or lock,

Axial movement compresses the door, with good shockproof function

Note: There are different tool-type lock cylinders, series keys and PA slider options

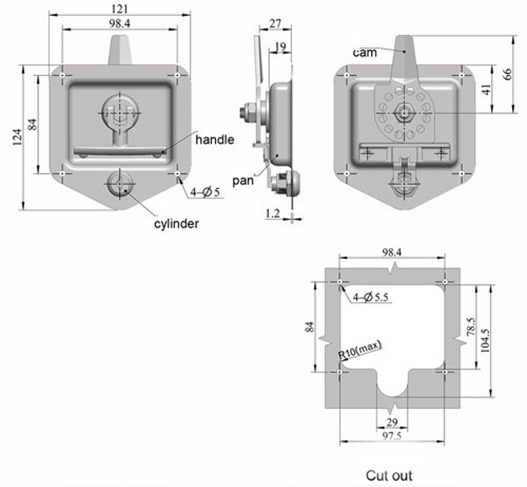

FOLDING T-SHAPED HANDLE LOCK

SPECIFICATIONS:

Material: Stainless steel panel; carbon steel bolt; Zinc alloy handle and lock assembly

Surface Treatment: Mirror polished panel, bright chrome plated handle; galvanized Steel bolt; rainbow-plated lock head assembly

Structural Features: 4 panels or washers with welding screws are optional

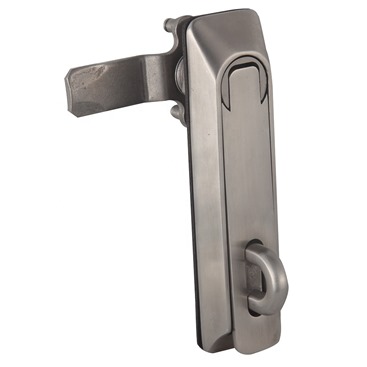

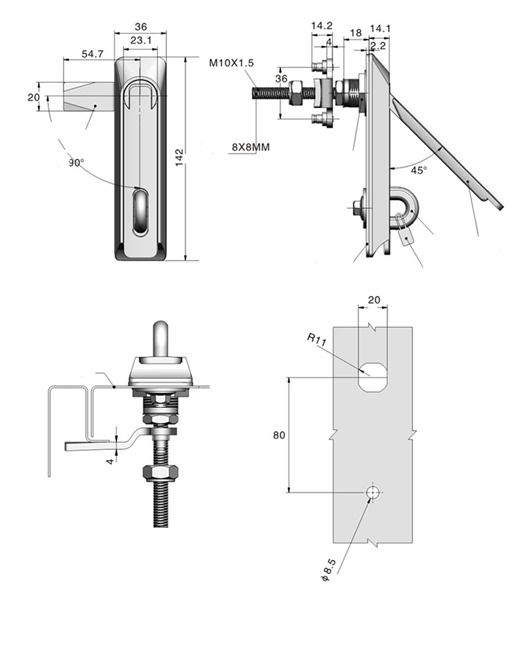

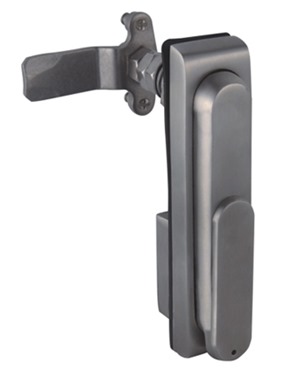

STAINLESS STEEL LOCK

SPECIFICATIONS:

MATERIAL: Stainless Steel Housing, Handle, Shaft, Cam. ZDC Cylinder with dust-proof cap

SURFACE: Brushed housing, handle, Tumbled cam, Zinc plated cylinder

CAM: Handle with Cam 90 degree turn achieve open.

STAINLESS STEEL LOCK

SPECIFICATIONS:

MATERIAL: Stainless Steel Housing, Handle, Shaft, Cam. ZDC Cylinder with dust-proof cap

SURFACE: Brushed housing, handle, Tumbled cam, Zinc plated cylinder

CAM: Handle with Cam 90 degree turn achieve open.

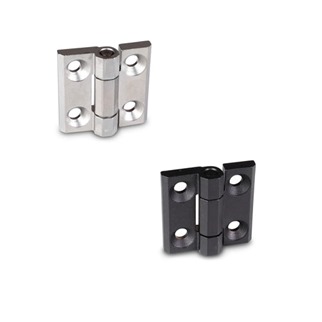

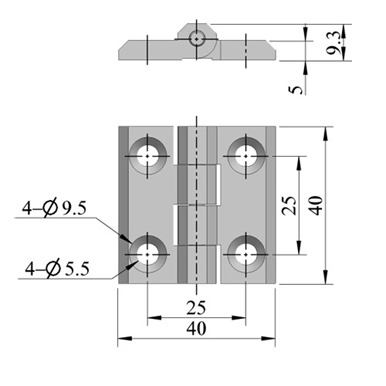

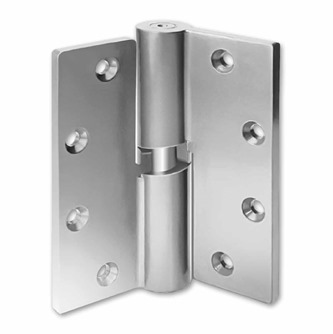

HINGES

SPECIFICATIONS:

Material: Zinc alloy, stainless steel shaft, carbon steel screw

Surface Treatment: Plastic sprayed black

Feature: 180 degree opening angle

Note: Surface treatment is optional
