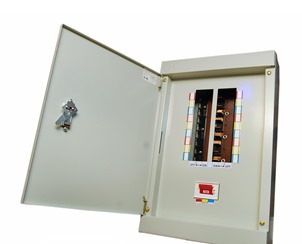

DISTRIBUTION BOARD

Our distribution board (also known as panelboard, breaker panel, electric panel, DB board or DB box) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.

A typical electrical distribution board includes the following components – bus bar, fuse links, switches, bypass equipment and residual current detector (RSD). In today’s world, safety is of the utmost importance when it comes to working with wires and cables at home which is essential to our business.

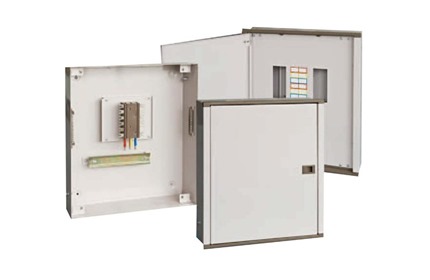

PAN ASSEMBLY

Pan assembly switchboard assembly by conventional longitudinal / lateral change the complicated connection line (Bus-Bar) composed of an integral configuration with, this one of the insulating case (Molded Case and miniature type) to pre-configured therein, standardization of the existing complex and unnecessary cost to the assembly process of a lot of Bus-Bar, modularity, standardization is a new concept of power distribution equipment.

It is widely used for the distributing circuit protection in the industrial, commercial and building.

TYPES & SPECIFICATIONS

AVAILABLE SERIES & DIMENSION

ALZCO1 Series 1 Phase Distribution Box

NO OF WAYS	Width (mm)	Height (mm	Depth (mm)
4 Ways	470	536	120
6 Ways	470	590	120
8 Ways	470	644	120
12 Ways	470	698	120

ALZCO2 Series 1 Phase Distribution Box – Surface Type

NO OF WAYS	Width (mm)	Height (mm	Depth (mm)
4 Ways	233	210	97
6 Ways	283	210	97
8 Ways	333	210	97
12 Ways	433	210	97

ALZCO3 Series 3 Phase Distribution Box

NO OF WAYS	Width (mm)	Height (mm	Depth (mm)
4 Ways	405	451	118
6 Ways	405	505	118
8 Ways	405	559	118
12 Ways	405	677	118

ALZCO4 Series 3 Phase Distribution Box – Surface Type

NO OF WAYS	Width (mm)	Height (mm	Depth (mm)
4 Ways	365	470	135
6 Ways	365	545	135
8 Ways	365	620	135
12 Ways	365	770	135

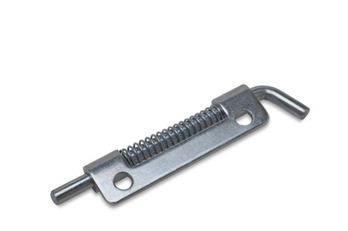

DISTRIBUTION BOARD ACCESSORIES

Need Help Choosing the Right Distribution Board?

Choosing the right distribution board is essential for ensuring safe, efficient, and organized power management in any electrical system. Whether you’re setting up a new installation or upgrading an existing setup, our experts are here to help you select and install the ideal solution every step of the way.
