AUTOMOTIVE RELAY & FLASHERS

Automotive relays are the common type of electromechanical relay that are used in all types of vehicles, like car, trucks, vans and trailers. They enable a small current flow circuit to control and operate a higher current circuit in vehicular applications.

We have a range of relays and flasher units covering 12V and 24V applications. Our customers also enjoy more flexibility with our customizable, made-by-order programmable timer relays.

SOCKET FOR FLASHER

This accepts up to 4 x 2.8mm and 5 x 6.3mm terminals. Can be gang mounted. Supplied with locking terminals.

SOCKET BASE FOR FLASHER – HEAVY DUTY

This accepts up to 4 x 2.8mm, 3 x 6.3mm and 2 x 9.5mm terminals. Can be gang mounted. Supplied with locking terminals

RELAY FOR FUEL

24 Volt, 30 Amp, with diode and bracket.

4 x 6.3mm terminals.

START SOLENOID SLAVE RELAY 24VDC - 70A

24 Volt, 70 Amp sealed with bracket.

2 x 6.3mm and 2 x 9.5mm terminals.

START RELAY 12VDC-70AMPS

12 Volt, 70 Amp with bracket.

2 x 6.3mm and 2 x 9.5mm terminals

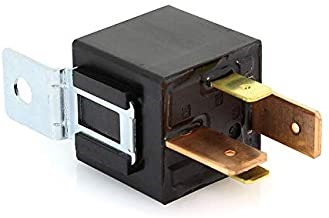

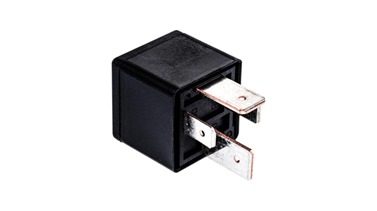

Relay 12VDC-30A

12 Volt, 30 Amp with bracket.

4 x 6.3mm terminals.

OTHER SPECIFICATIONS

Contact Form	1A, 1C
Contact Material	AgSno²
Max Operating Current	40A, 70A
Max Operating Voltage	27 VDC
Insulation Resistance	100MΩ
Dielectric Strength (Coil & Contact)	500VAC/M
Ambient Temperature	-40^◦ C ̴+85^◦ C
Operate Release	10ms/10ms
Mechanical Life	1*10⁶
Electrical Life	1*10^5</sup
Terminal Type	Terminal
Standard Normal Voltage	12VDC, 24VDC
Standard Pick up Voltage	8.4VDC, 16.8VDC
Drop Out Voltage	1.2VDC, 2.4VDC
Power Consumption	1.6, 1.8

WhatsApp Image 2025-06-28 at 07.18.41_5ea78133

Need Help Choosing the Automotive Relay & Flashers?

Choosing the right automotive relay flashers is essential for ensuring reliable signal operation, electrical safety, and optimal performance in vehicle systems. Whether you’re installing a new unit or replacing an old one, our experts are here to help you select and integrate the ideal solution every step of the way.

OR

Call Us Any Time!

+971 56 119 2918

ALZ Technical DMCC is one of the leading technical service companies in Nigeria, established in 2015. Our comprehensive knowledge of technical procedures, combined with our working relationships with numerous production and manufacturing companies, uniquely enables us to provide reliable and expedited services to our clients.
